ELEVATION DRAWINGS

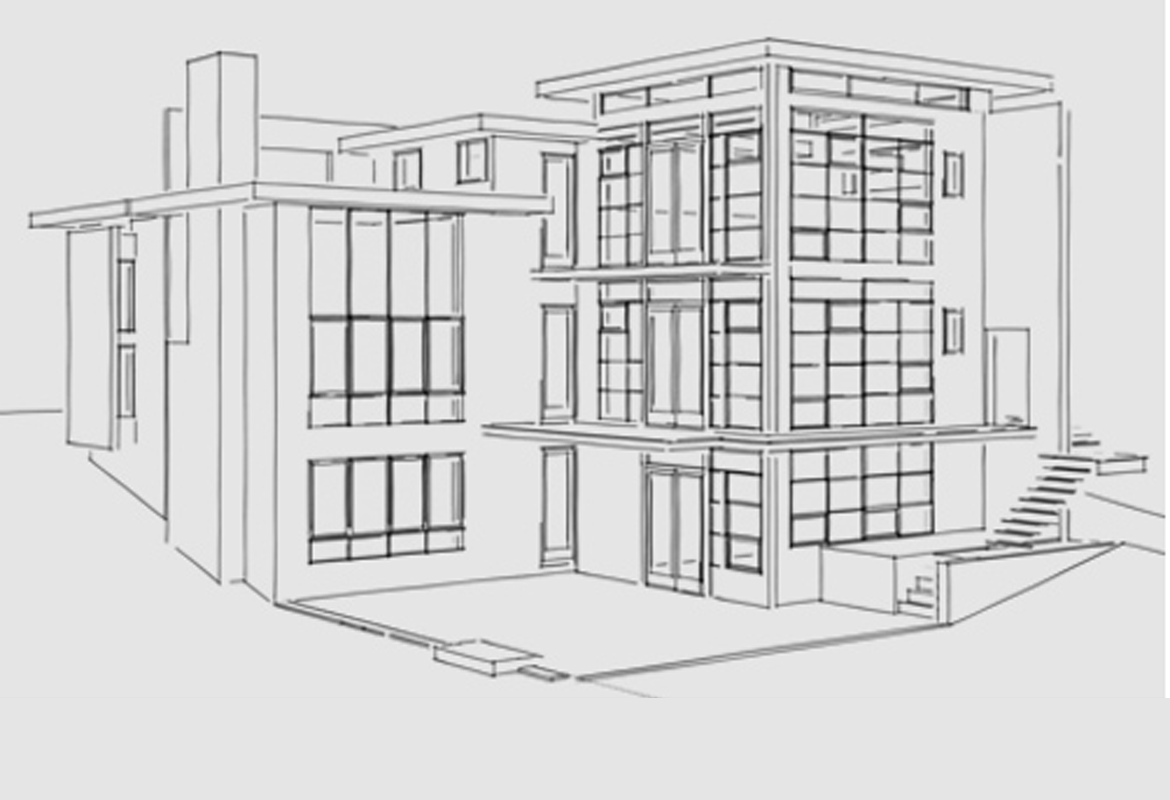

An elevation is a view of a building seen from one side, a flat representation of one façade. This is the most common view used to describe the external appearance of a building. Each elevation is labelled in relation to the compass direction it faces, e.g. looking toward the north you would be seeing the southern elevation of the building. Buildings are rarely a simple rectangular shape in plan, so a typical elevation may show all the parts of the building that are seen from a particular direction. Geometrically, an elevation is a horizontal orthographic projection a building on to a vertical plane, the vertical plane normally being parallel to one side of the building.
